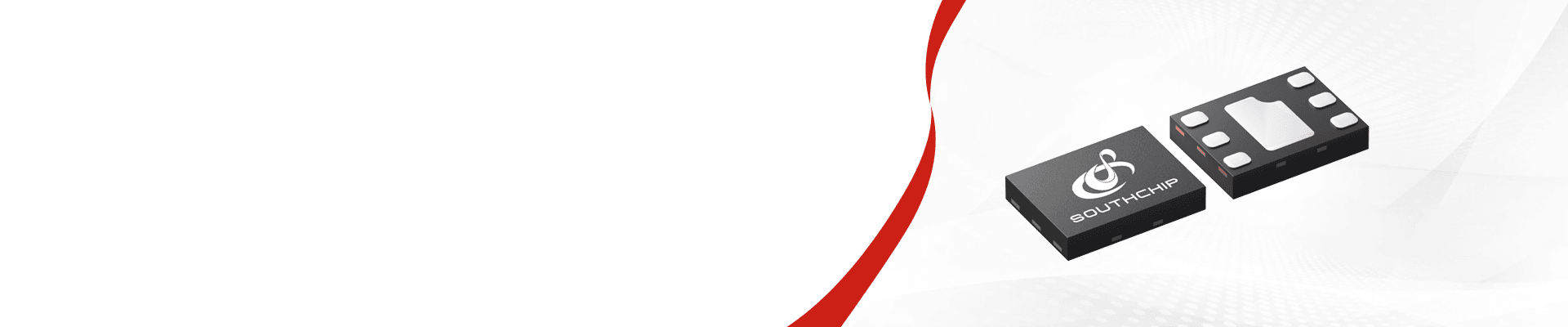

SC5618B01

High Accuracy 1 Cell Li-ion/Li-polymer Battery Protection

SC5618B01SC5618B01

SC5618B01

High Accuracy 1 Cell Li-ion/Li-polymer Battery Protection

SC5618 series are single cell Li-ion battery primary protection IC. It monitors the battery voltage and current, provides accurate protection and recovery threshold, and control the external CHG and DSG FET to provide full array protection.
SC5618B01
SC5618 series are single cell Li-ion battery primary protection IC. It monitors the battery voltage and current, provides accurate protection and recovery threshold, and control the external CHG and DSG FET to provide full array protection.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Technical Documentation

Parameter NameParameter Value
VOCV(V)4.450±0.020
VOCV hys. (mV)200
VODV (V)2.8
VODV hys. (mV)200
VDOC1 (mV)24
VDOC2 (mV)-
VSC (mV)50
VCOC (mV)-24
tDOC1 (ms)16
Parameter NameParameter Value
tDOC2 (ms)-
tCOC (ms)8
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingInhibit
UV latchDisable
OV latchDisable
PackageDFN6L
Parameter NameParameter Value
VOCV(V)4.450±0.020
VOCV hys. (mV)200
VODV (V)2.8
VODV hys. (mV)200
VDOC1 (mV)24
VDOC2 (mV)-
VSC (mV)50
VCOC (mV)-24
tDOC1 (ms)16
tDOC2 (ms)-
tCOC (ms)8
tSC (us)280
tOCV (ms)1024
tODV (ms)64
0V chargingInhibit
UV latchDisable
OV latchDisable
PackageDFN6L
