SC6010

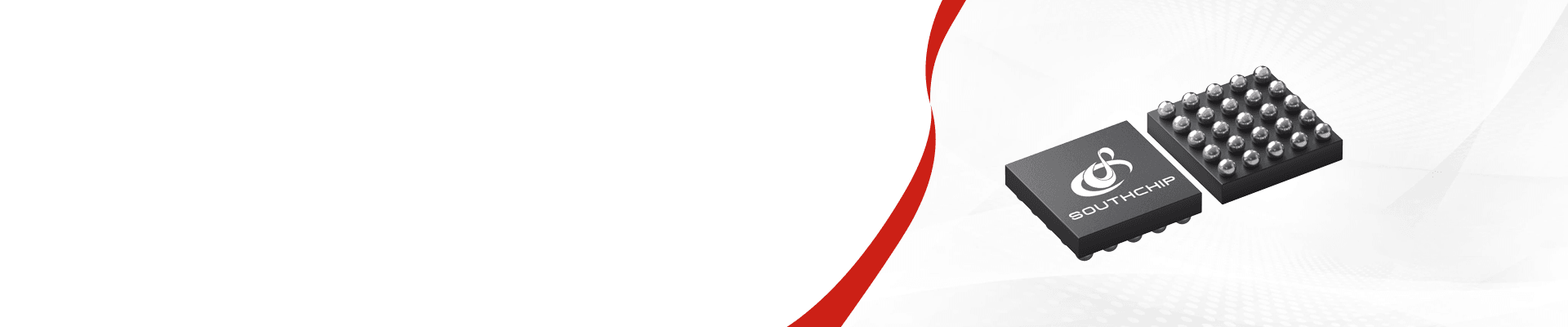

High-Efficiency 800mA Triple-Outputs Power Supply for AMOLED Display

SC6010SC6010

SC6010

High-Efficiency 800mA Triple-Outputs Power Supply for AMOLED Display

The SC6010 is a triple-channel switching mode power supply designed to drive AMOLED displays requiring VELVDD, VELVSS, and VAVDD.
SC6010
The SC6010 is a triple-channel switching mode power supply designed to drive AMOLED displays requiring VELVDD, VELVSS, and VAVDD.
Product Details
Design / Development
Technical Documentation
Applications

Product Details

Design / Development

Parameters
Value
EVM Model
SC6010 EVM
Key Part Number
SC6010
EL Maximum Current
800mA
AVDD Current
150mA

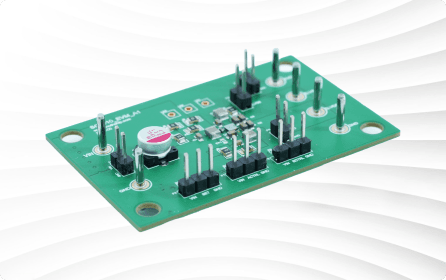

SC6010 EVM

Technical Documentation

Parameter NameParameter Value
VIN range2.5-5.0V
Abs. VIN (max)6V
ELVDD [V]4.6V~5.0V
ELVSS [V]-1V~-6.6V
AVDD [V]6.9V~7.9V
Iout(Max)800mA
Parameter NameParameter Value
MOSINT
TopologyBoost/Buck-boost/Boost
Fsw1.4MHz
PFM√
FeaturesSCP, OTP
PackageWLCSP-25 2x2
Parameter NameParameter Value
VIN range2.5-5.0V
Abs. VIN (max)6V
ELVDD [V]4.6V~5.0V
ELVSS [V]-1V~-6.6V
AVDD [V]6.9V~7.9V
Iout(Max)800mA
MOSINT
TopologyBoost/Buck-boost/Boost
Fsw1.4MHz
PFM√
FeaturesSCP, OTP
PackageWLCSP-25 2x2
